Choose a high-capacity CPAP battery if…

• You’re looking for a CPAP battery that can power your machine during an extended power outage
• You require high-pressure CPAP therapy
• These batteries are usually over 160+ Wh
• Examples include the Zopec Explore Oxygen or the EXP96 Pro}

{Insert the Following Header Copy in Heading 3 Formatting and the Following Section Copy in Paragraph formatting:

Choose a mid-capacity battery if…

• You’re spending a couple of nights off the power grid
• You need to charge your phone or laptop and use your CPAP machine for a night
• Usually rated around 100-160 Wh
• Examples include the Zopec Explorer 5500, Universal Freedom V2, or EXP48 Pro}

{Insert the Following Header Copy in Heading 3 Formatting and the Following Section Copy in Paragraph formatting:

Choose a lower-capacity battery if…

• You need a battery that can power you through an overnight flight or car ride.
• You’re looking for a battery that will power your machine for the night.
• You want something to charge small personal devices, like a cell phone or tablet.
• You’re okay with linking multiple batteries together to extend battery life.
• Usually rated below 95 Wh
• Examples include the Zopec Explore 4000, Portable Outlet UPS, or the Medistrom Pilot-12 Lite.

Machine Compatibility

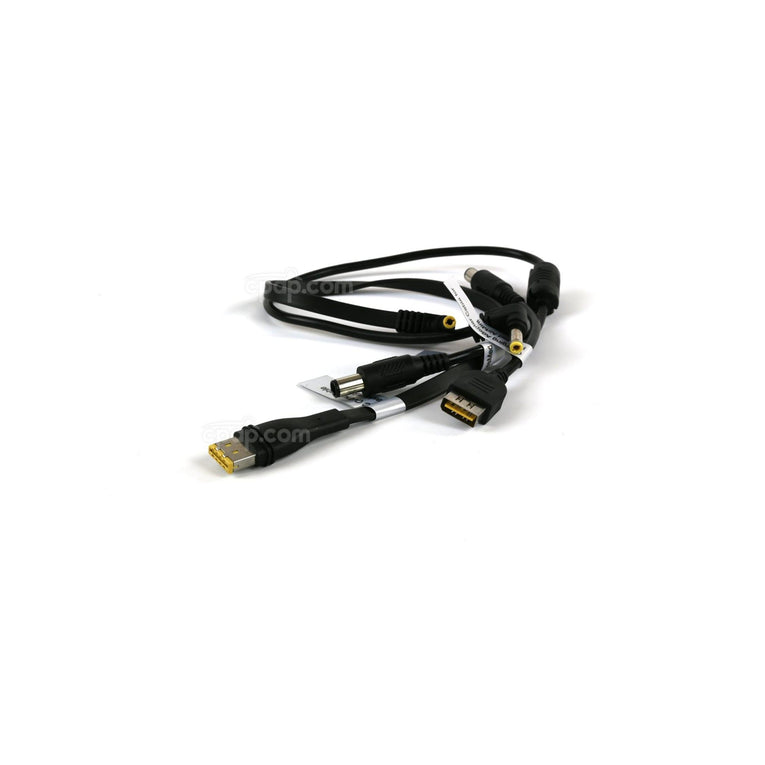

This battery is compatible with the following devices. Keep in mind that some devices may require the purchase of an adaptor cable. Machines without an "*" do not require you to purchase additional cables. Machines with an "*" do require you to purchase an adaptor kit in order to charge your battery and power your machine.

• ResMed AirSense 11*
• ResMed AirSense 10

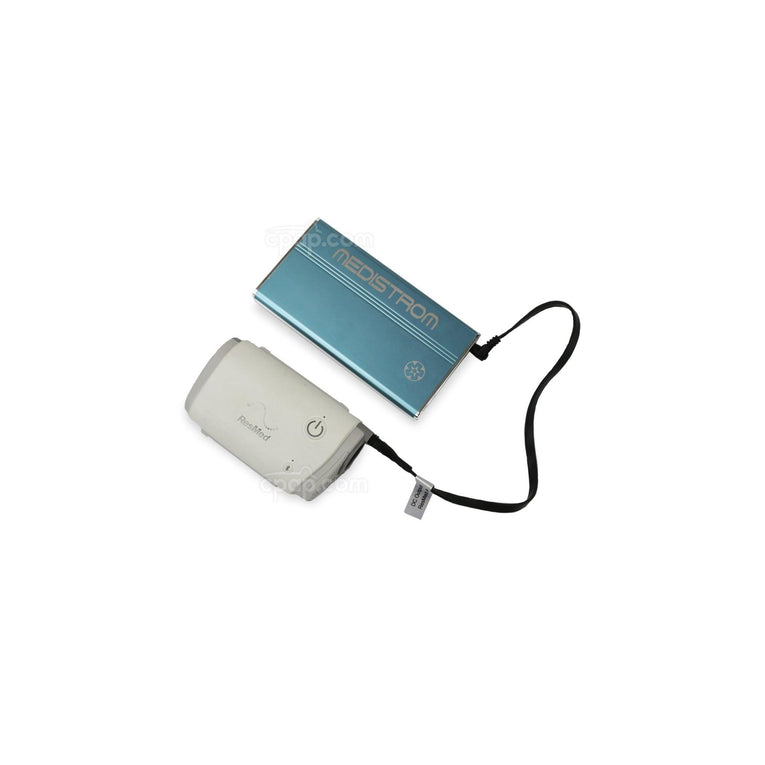

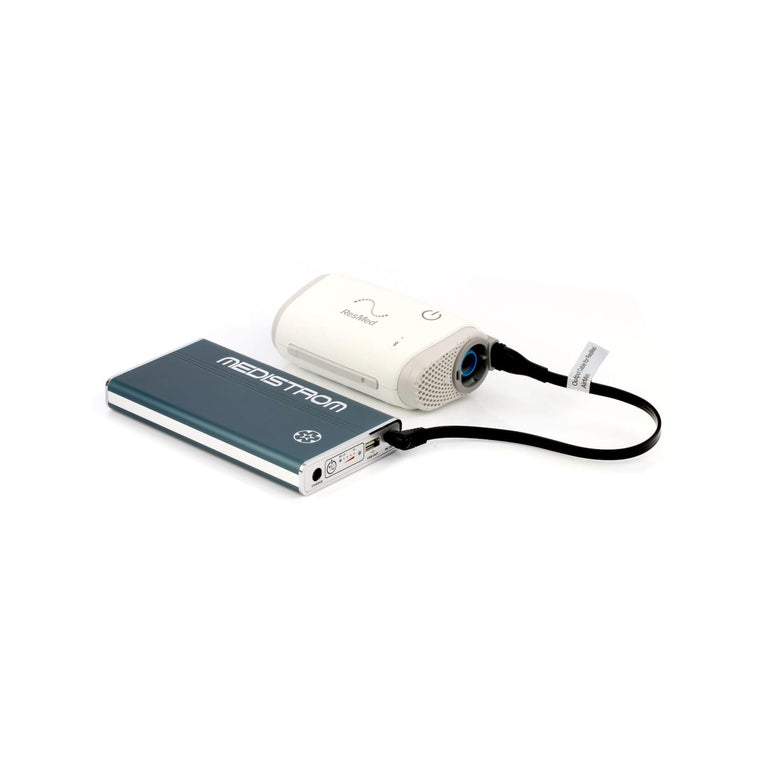

• ResMed AirMini
• ResMed S9*
• Sefam S.Box*
• Löwenstein prismaSMART*
• Philips Respironics DreamStation Go*
• 3B Luna II*
• 3B Luna G3*
• Apex Medical iCH*

Charging Your CPAP Battery

This battery can be used as a portable power source when traveling with your CPAP machine. To do this, you will need to charge the battery ahead of time.

1. Disconnect your CPAP machine from the power cord.

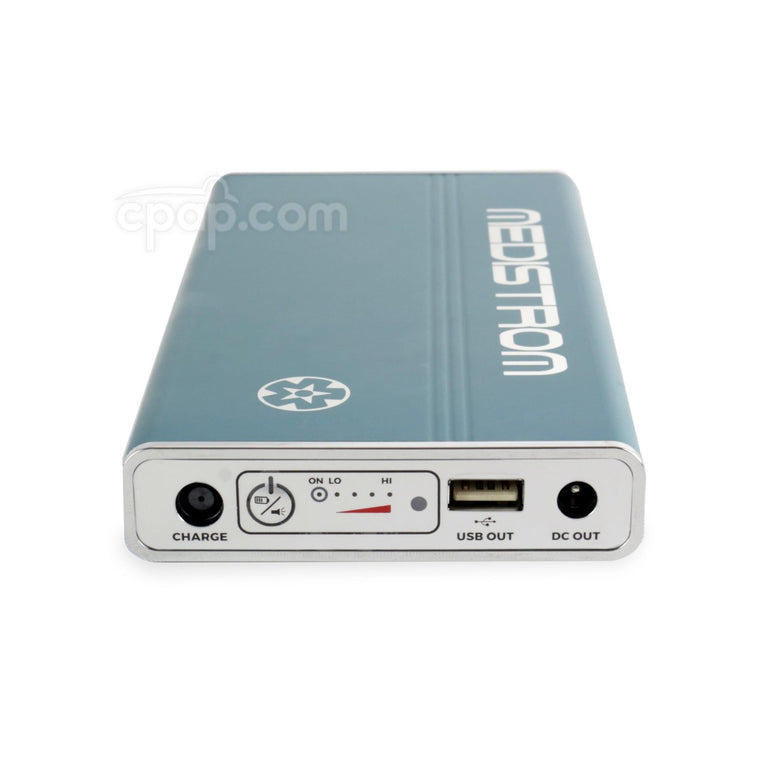

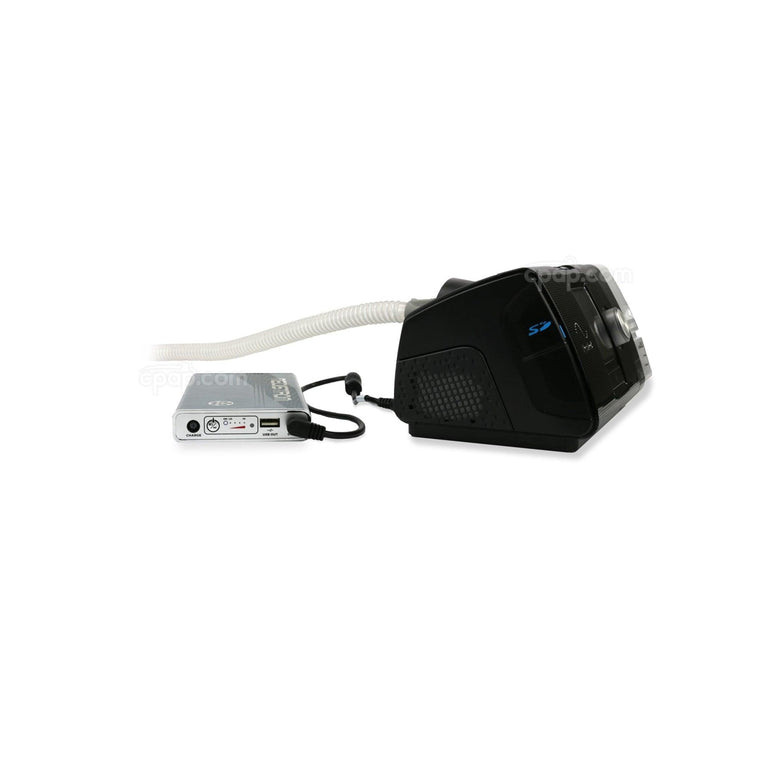

2. If you are using an AirSense 10, connect your machine's power cord to your battery through the "CHARGE" port of the battery.
3. If you are using any other compatible machine, connect your machine's power cord to the charging adaptor.
4. Plug the adaptor into the "CHARGE" port of the battery.

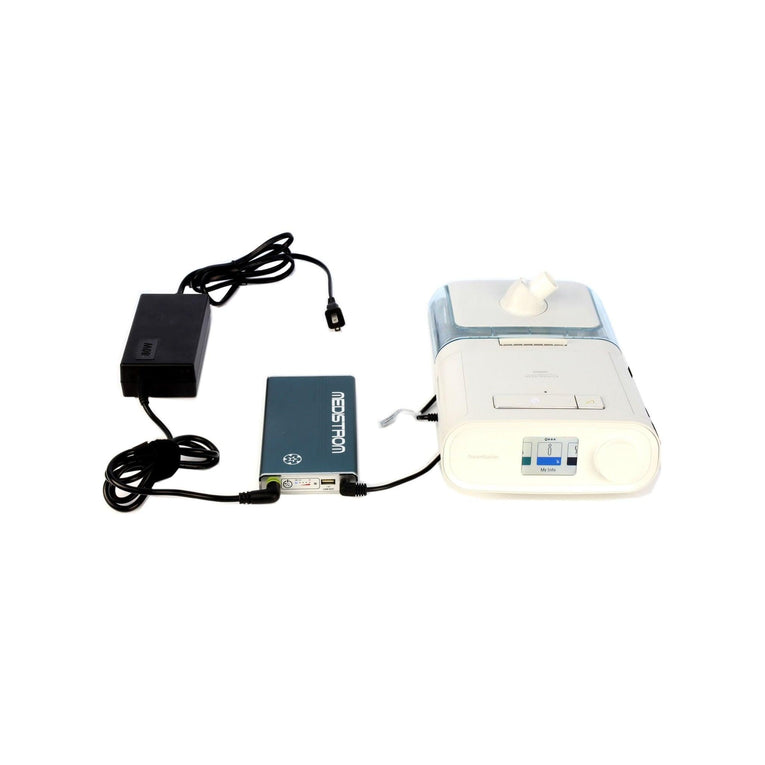

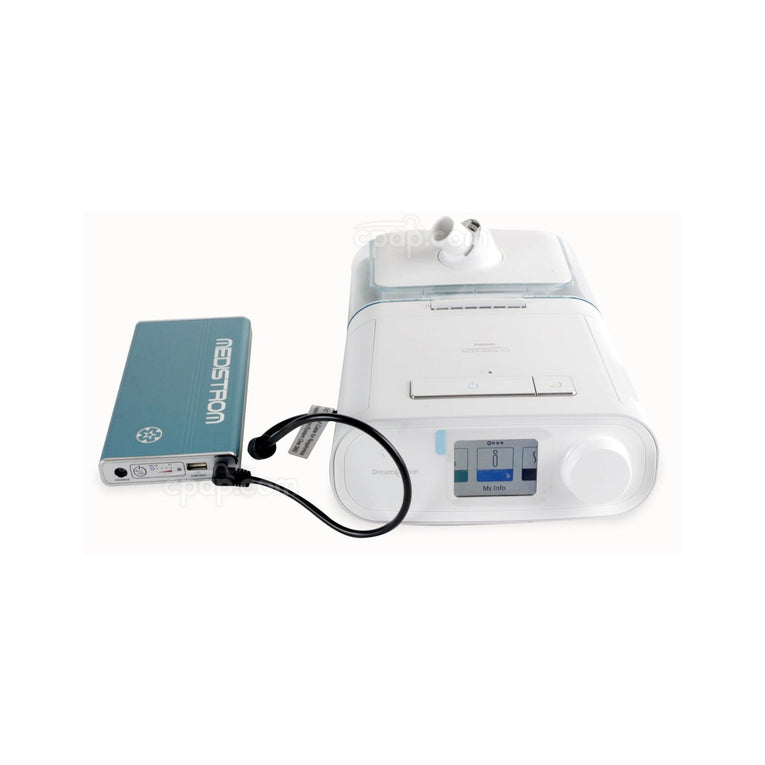

Using Your Battery As a Backup Power Source

If you are expecting a power outage while you are using your CPAP machine, a backup battery can prevent you from having to cut your CPAP therapy short. This battery can be used as a backup power supply that immediately takes over powering your machine the moment your home loses electricity, so you don't have to wake up.

1. Disconnect your CPAP machine from its power supply cord.
2. Connect your battery to your machine's power cord as if you were about to charge it.
3. Plug the machine connecting cable into the "DC OUT" port.
4. Plug the other end of the machine connecting cable into your machine.
5. Turn on your battery.
6. Your battery should begin charging as it powers your CPAP machine at the same time.

Extending the Life of Your CPAP Battery

• Extend battery power by turning off humidifier and heated tubing.
• Using a humidifier reduces battery run time by 50 - 60%.
• Using a humidifier and heated tubing reduces battery run time by 70-80%.
• BiPAP machines require about 20% more power than CPAP.
• Travel machines use less power than a standard machine and are ideal for frequent travelers or power outages.
• If battery life is limited and you will not have access to power for several days, talk to your doctor about temporarily limiting CPAP usage to 4-6 hours per night.

FAA/TSA Tips

At 95 Wh, the Medistrom Pilot-24 Lite is approved for air travel. Below are the guidelines for flying with your CPAP battery. Keep in mind that each airlines has the ability to create additional rules, so it's best to double-check with your specific airline before your flight.

• CPAP batteries are not permitted in checked luggage and must be stored in your carry-on bag
• All battery terminals should be covered to prevent a short circuit.
• Passengers are allowed to carry an unlimited number of mid-capacity (up to 100 Wh) lithium-ion batteries for personal use.
• Passengers are also allowed to carry up to 2 high capacity (101-160 Wh) lithium-ion batteries for personal use.

Storing Your CPAP Battery

• Fully charge battery before storing and every 6 months after.
• Choose a cool, dry, well-ventilated location.
• Keep out of direct sunlight.
• Avoid extreme temperatures.
• Keep away from flammable or explosive materials.
• Do not let the battery remain dead for any extended period of time, as this can reduce maximum battery life.

Safety Tips

• Keep out of reach from children.
• Avoid dropping the battery.
• Keep away from water or moisture.
• Use manufacturer-approved battery chargers to avoid short circuit.
• Do not disassemble.
• Do not attempt to repair.
• Charge battery on a hard, non-flammable surface.
• Do not use outside the operating temperature range specified in the product manual, which is usually between 32 - 115°F.
• Do not charge if the charging cord or battery has obvious damage or if the battery appears to be bulging.
• Do not leave unattended for long periods of time while charging.
• Avoid coming in contact with any electrolyte leakage.

Disposing of Your CPAP Battery

• Lithium-ion batteries should not be discarded with typical household trash.
• Contact your local waste department for more information.
• Damaged batteries should be immediately stored in a water-tight, non-flammable container until they can be disposed of.
• To prevent fires, place the battery in a separate plastic bag or cover the battery terminals with tape.
